See through your drone’s eyes
Your Echo Drone has a 720p camera. Today you’ll connect your phone to the drone and watch its live video feed - the same first-person view real drone pilots use. This runs over Wi-Fi using the Tspeed7 app.

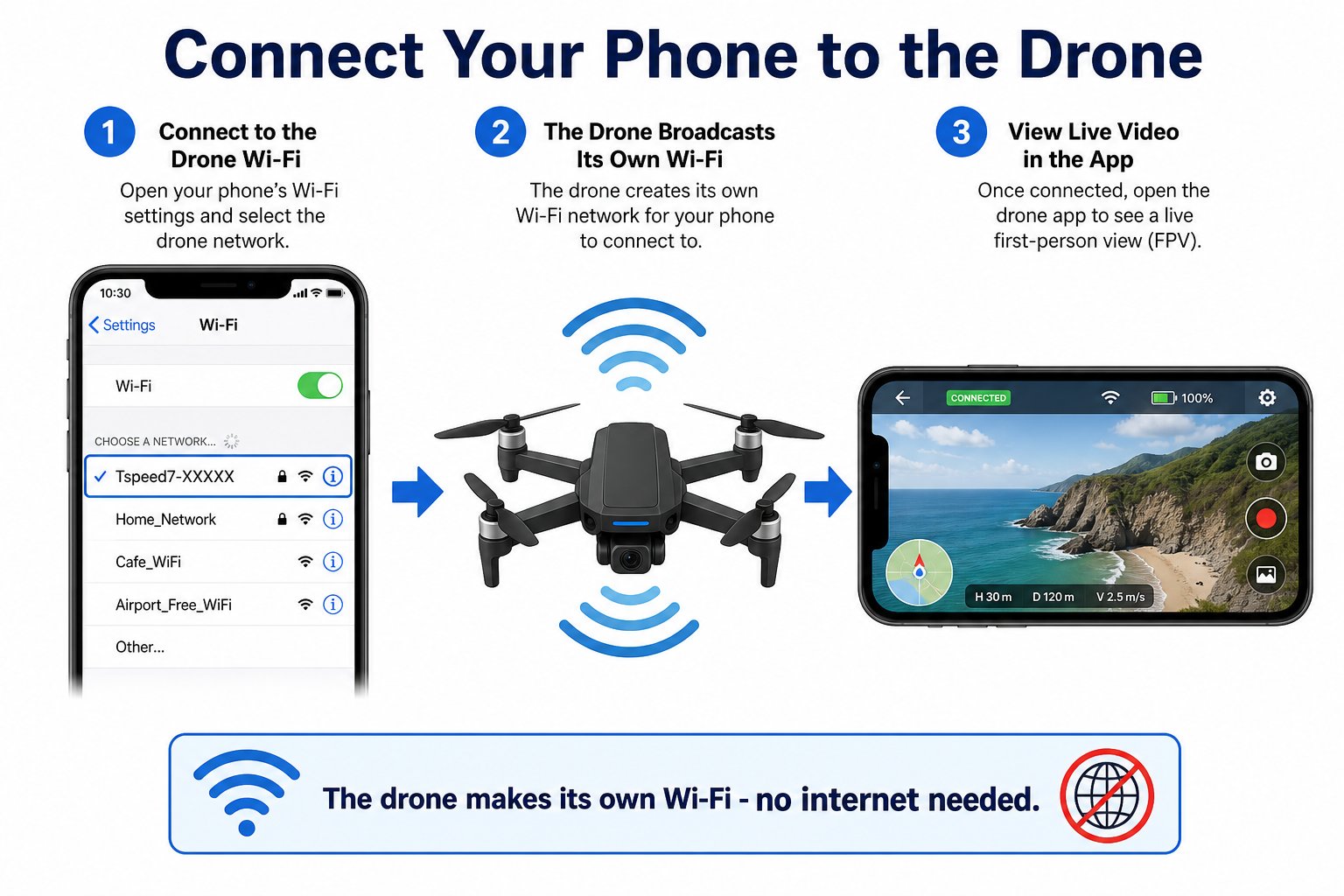

Your phone joins the drone's own Wi-Fi to see the live camera feed
Camera video is separate from the Bluetooth coding you did on Day 3. The camera streams over Wi-Fi to the phone app, while echo.pitsco.com used Bluetooth for code. Different jobs, different connections.

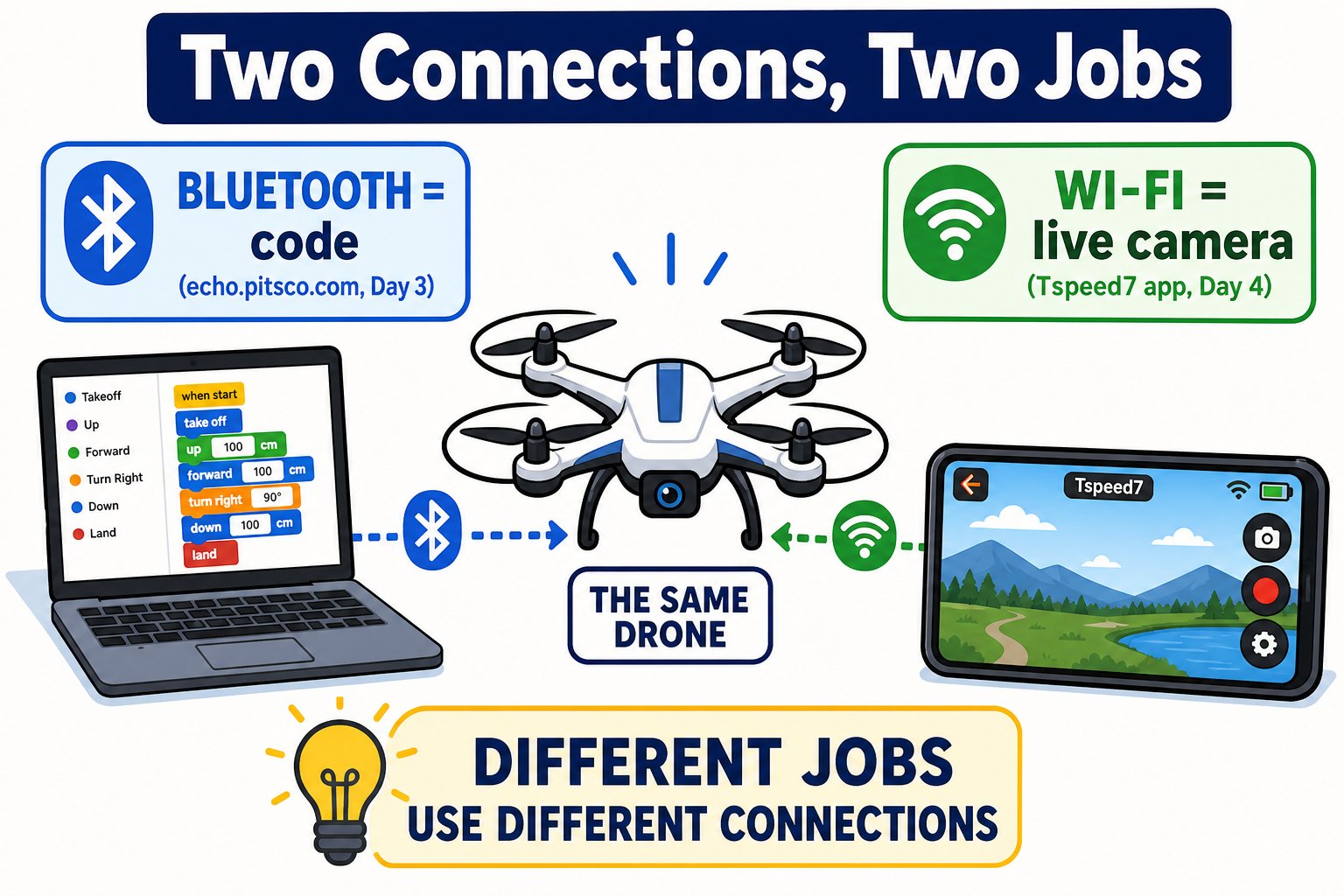

Two radios, two jobs
Your drone actually has two wireless connections, and they do completely different things. Yesterday you used Bluetooth to send code. Today you’ll use Wi-Fi to receive video.
Bluetooth carries your code; Wi-Fi carries the camera picture
Download the app
Connect over Wi-Fi

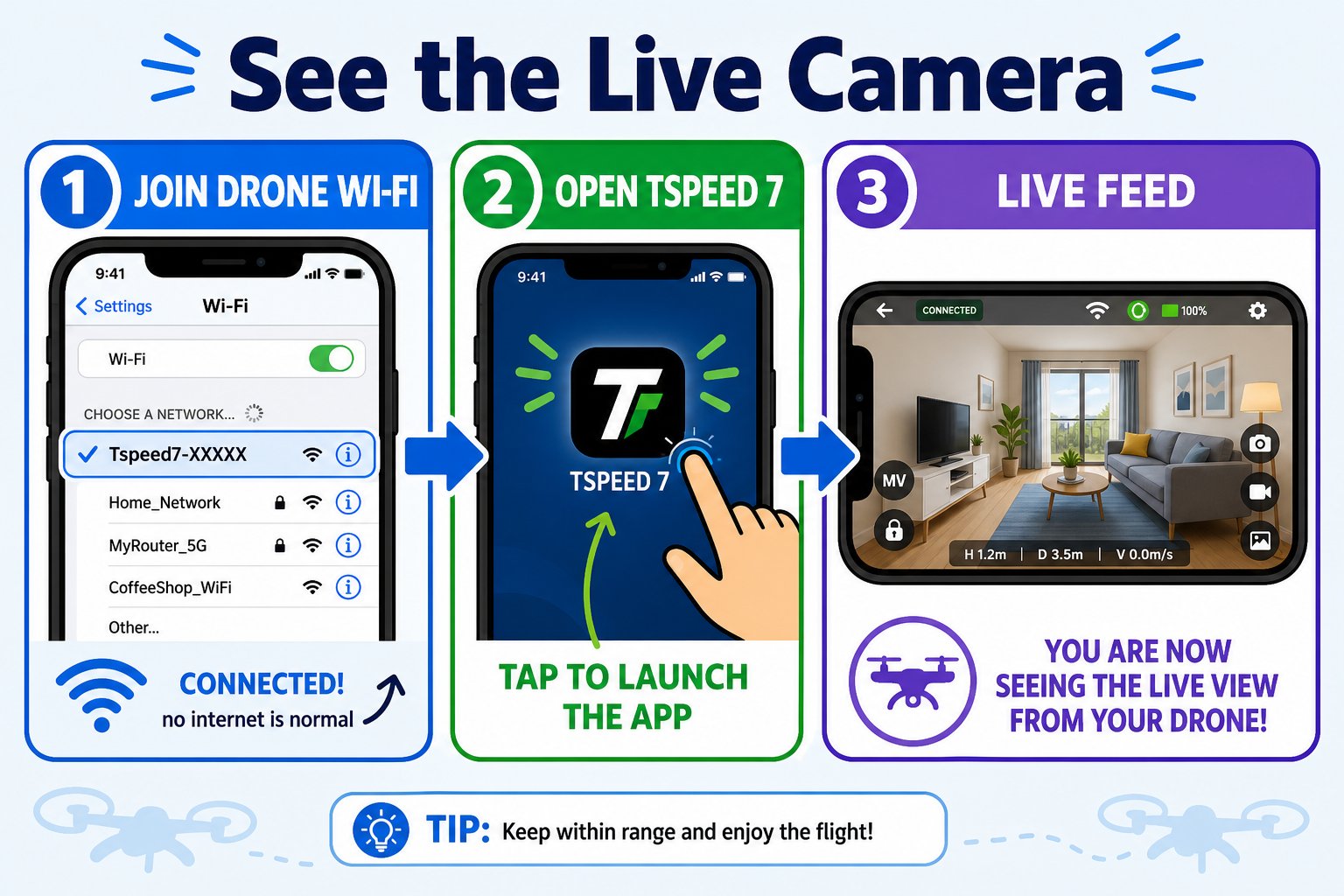

Four steps to a live feed: power on, join the drone's Wi-Fi, open the app, allow permissions
Turn on your drone
Power it up and set it on a flat surface.
Join the drone's Wi-Fi
In your phone’s Wi-Fi settings, connect to the network named “Tspeed7-XXXXX”. Your phone may warn there’s “no internet” - that’s correct. You’re connected straight to the drone.
Open Tspeed 7
Launch the app. The live camera feed should appear on screen.
Allow location if asked
Grant location access so the drone can tell where the pilot is (used for some flight features).
No 'Tspeed7-XXXXX' network appears
No 'Tspeed7-XXXXX' network appears
Make sure the drone is fully powered on and give it 20-30 seconds to broadcast its Wi-Fi. Pull down to refresh your phone’s Wi-Fi list.
Connected to Wi-Fi but no video
Connected to Wi-Fi but no video
Force-close and reopen the Tspeed 7 app. Confirm your phone is still on the drone’s network and not on the school Wi-Fi.
Phone says 'no internet, stay connected?'
Phone says 'no internet, stay connected?'
Tap stay connected. The drone’s Wi-Fi has no internet on purpose - it’s a direct link to the drone, not a router.
What you can do in the app
Live camera view
See real-time video from the drone’s camera on your phone.
On-screen controls
Fly the drone with touch joysticks right in the app.
Take photos and video
Capture aerial photos and clips, saved in the app’s album.
Flight helpers
Adjust speed, trim, headless mode, and more from the interface.
Your phone is connected to the drone’s Wi-Fi and you can see the live camera feed in the Tspeed 7 app.
